Racing-Grade Off-Road Suspension System
The rear suspension features a fully adjustable air shock with 60mm of travel and maximum rear wheel travel of 185mm. It features and advanced 35mm inverted front suspension with 170mm of travel and easily adjustable rebound and compression damping.
Efficient Braking, Effortless Control
-
A custom-designed dual-piston hydraulic braking system, featuring 180mm front- and 160mm rear discs, delivers superior stopping power.
-
Thicker discs and pads provide increased strength and heat capacity, resulting in reduced brake fade even under demanding riding conditions.
-
A large 6.25:1 piston ratio ensures effortless braking power. Both brake-levers feature tool-free reach adjustment dials, allowing for personalized lever throw and comfortable operation with one or two fingers.
Battery Safety
Equipped with an automotive-grade Battery Management System (BMS), this setup offers comprehensive protection logic and outputs strictly according to the power output. Multiple temperature sensors with real-time monitoring ensure optimal performance, and the system boasts high-impact resistance and a waterproof rating of up to IP67.
50.4V 25 AH High-Capacity Battery Pack
-
Introducing the SUR-RON Simpler Lock Quick-Release Battery: The knob-style compression structure allows for tool-free, single-handed quick installation and removal.
-
The battery can be quickly replaced in just 10 seconds.
-
Charge from 0 to 100% in just 4.5 hours with a convenient magnetic connector for easy and fast operation. The entire battery pack is lightweight at just 7.3kg, featuring a direct power connection between the battery base and vehicle socket.
High-Performance Longitudinal Motor
With a maximum power output of up to 5kW, this motor features an embedded magnetic cylinder design that optimizes the use of motor flux weakening control to enhance speed and performance. It can deliver an impressive torque of 150 Nm to the drive wheel, achieving 0-50 km/h in just 3.6 seconds. The motor significantly increases the the heat dissipation are exposed to airflow, effectively reducing operating temperatures with its unique longitudinal structure.

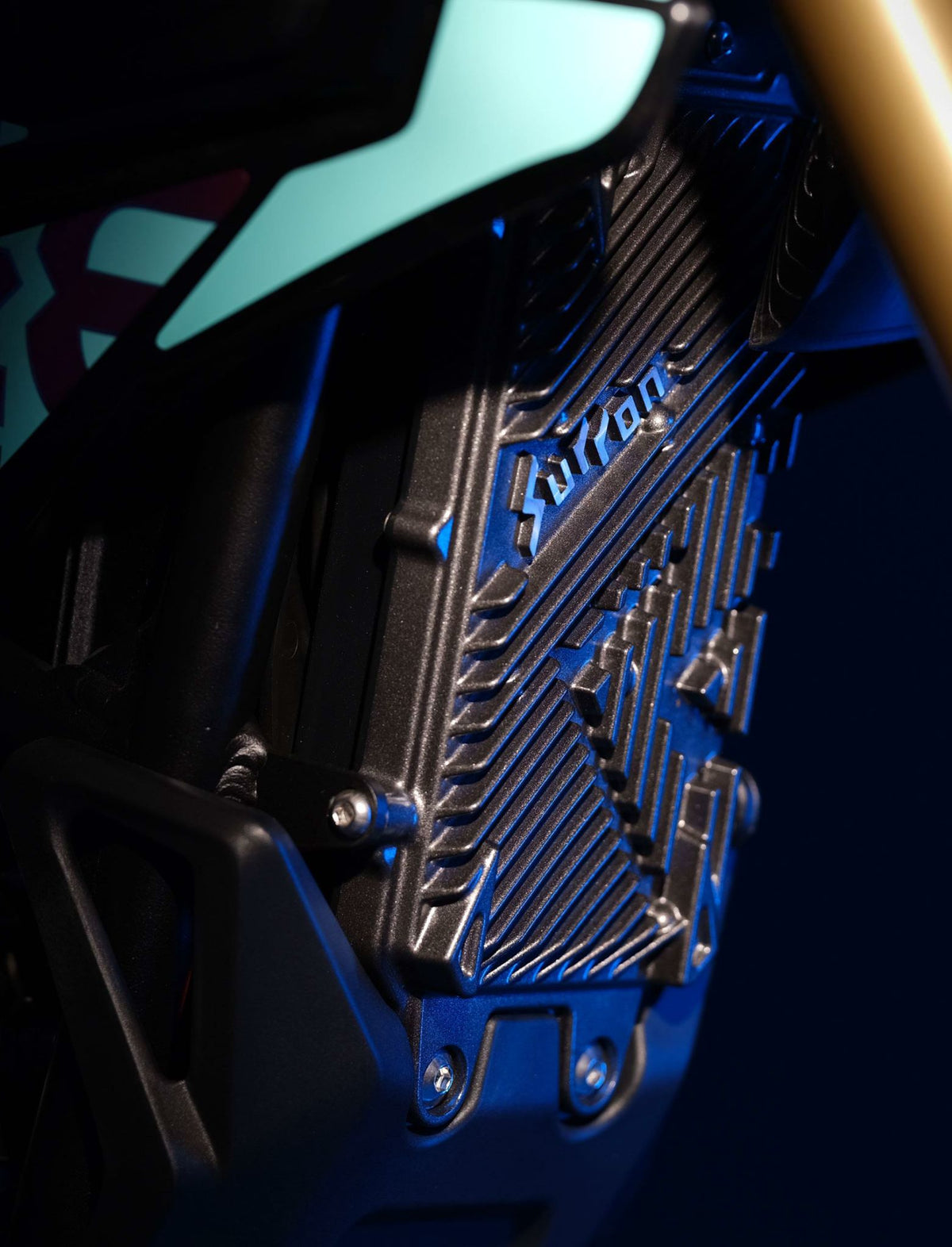

MTPA/MTPV Controller
Take complete control of your ride with customizable power delivery. Fine-tune the throttle response curve, adjust the kinetic energy recovery level, and select from multiple power output modes. These electronic features cater to a wide range of riding styles and skill levels, ensuring a personalized experience. Same model, different personalities - tailor the ride to match yours.
Multi-Function Dashboard
Speed, mileage, battery level, power mode, vehicle settings, reverse gear indicator, fault codes, Bluetooth connectivity, Remote Intercom. This compact display offers comprehensive information at a glance.
Safety Features
-
Throttle False Triggering Protection
The throttle safety feature ensure that if the throttle is not reset when the vehicle is started, no power will be delivered. This prevents unintended acceleration and enhances rider safety.
-
Safety Start
When the vehicle is ready for riding, you need to click the "Ready" button. At this point the dashboard will light up with a green "Ready" indicator, activating the power output.
-
Tilt Protection
The vehicle is equipped with a build-in tilt sensor, if an accident such as a fall or tilt occurs, while riding, the protection mechanism will be triggered, cutting off power output.
Active Safety Functions
Hyper Bee Remote Control
Pioneering vehicle remote control equipped, integrating remote communication, power level adjustment, and emergency power-off functions. With a communication distance of 150-300 meters, outdoor exploration is seamless. 3 riding modes can be switched freely, with gradual power output for a more comfortable ride. The one-touch emergency power-of button ensures rider safety.
